Layout & DFM
From schematics to production ready.

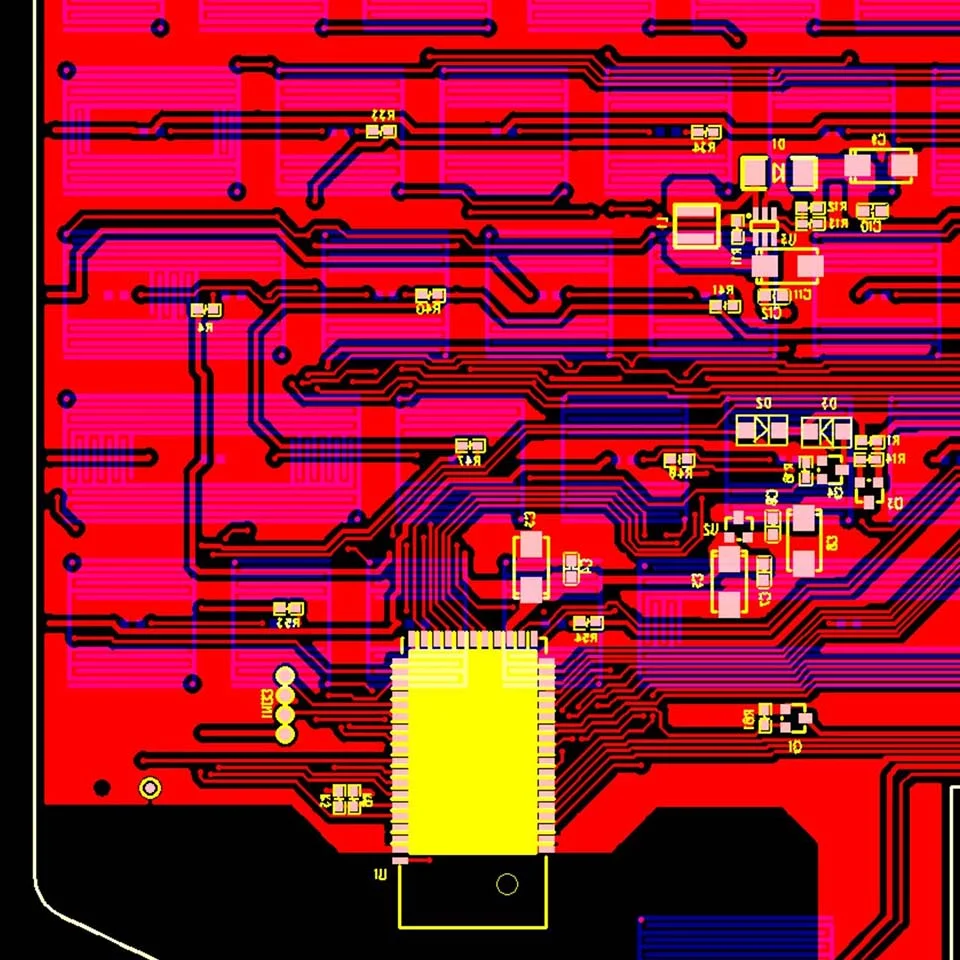

Layout & DFM
From schematics to production ready.
Whether your design is a simple single-layered project or large multi-layered board, take your product from schematic to production ready gerber with our PCB layout service. We can help design for manufacturing while taking into account specific requirements, such as:
- Impedance control
- Differential pairs
- Panelization considerations
- Mechanical design
fabrication
Build with our experienced manufacturing services.
fabrication
Build with our experienced manufacturing services.
IPA Electronics has been in the PCB industry for 20 years. Because PCBs come in all shapes, sizes, and materials, we offer a wide range of options to match.
- Regular, quick, and super quick turns
- Rigid and flexible PCBs
- Peelable solder masks
- Layer stack suggestions
- Various surface finishes including ENIG, hard gold, leaded and lead-free HASL, immersion tin, immersion silver, OSP/Entek
- FR4 fiberglass, aluminum, ceramic, and other materials
Total Assembly
Bring it all together.
Total Assembly
Bring it all together.
Utilize our assembly solutions to help bring your product to market more efficiently:

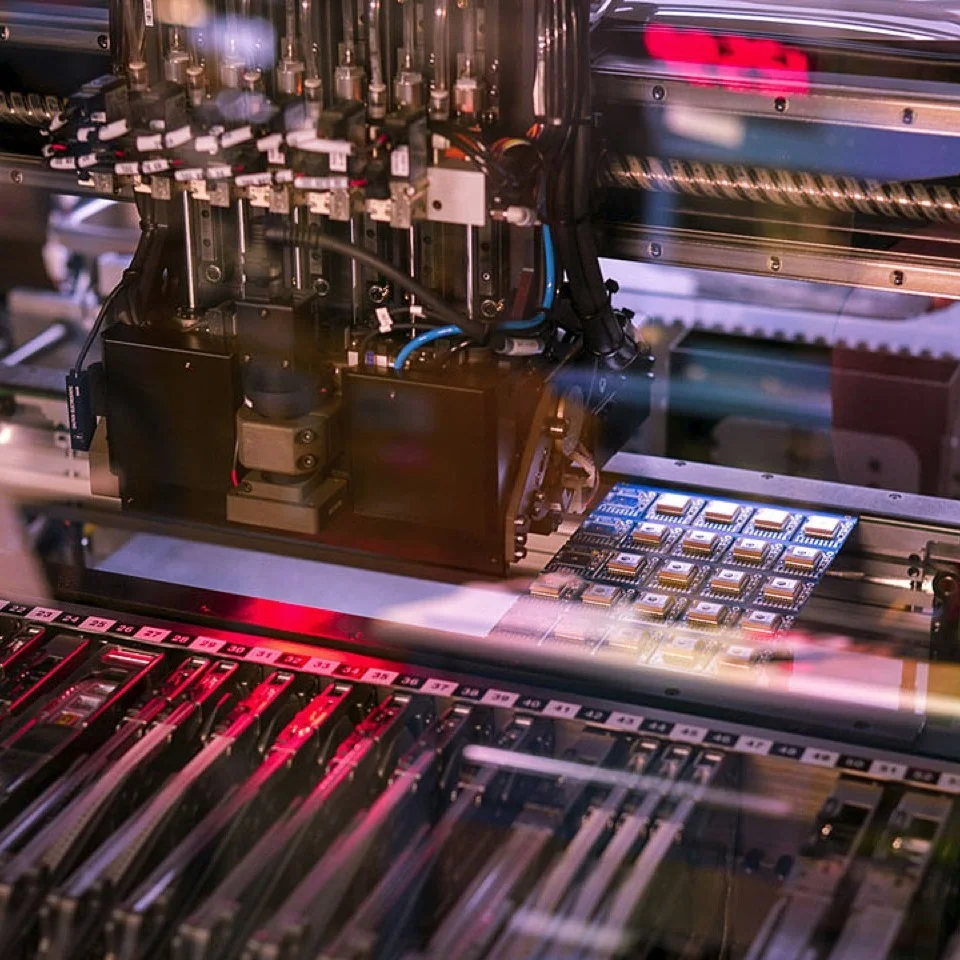

PCB AssemblY

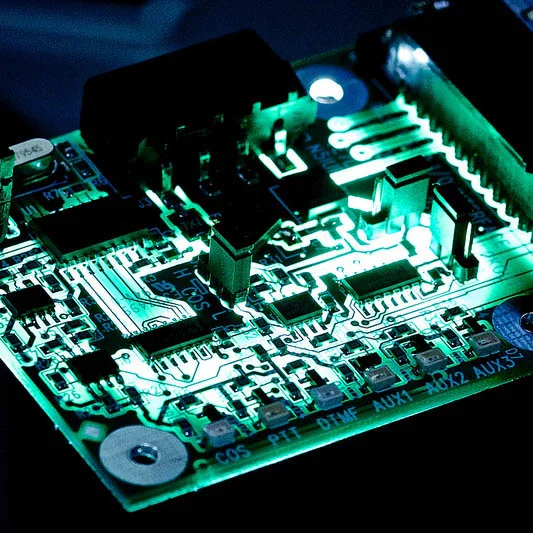

Our capabilities include traditional through-hole mounting, precision high-density SMT, reworks, conformal and waterproof coatings compliant to both consumer and military application requirements.
Full AssembLY
Integration of higher level components, ranging from partial assemblies to complete devices, and our full suite of quality testing.
